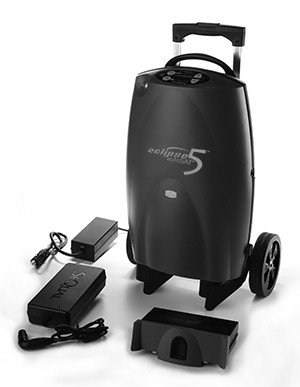

Sequal Eclipse 5 Portable Oxygen Concentrator

Description

Powerful  portable constant flow o2 concentrators with high levels of pulse mode greater than 6lpm. Warranty: 3 years on machine, 12 months on batteries and accessories.

What Comes In The Package

• Eclispe 5 o2 concentrator

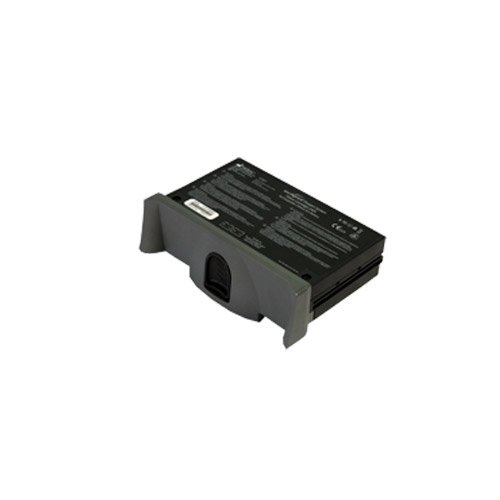

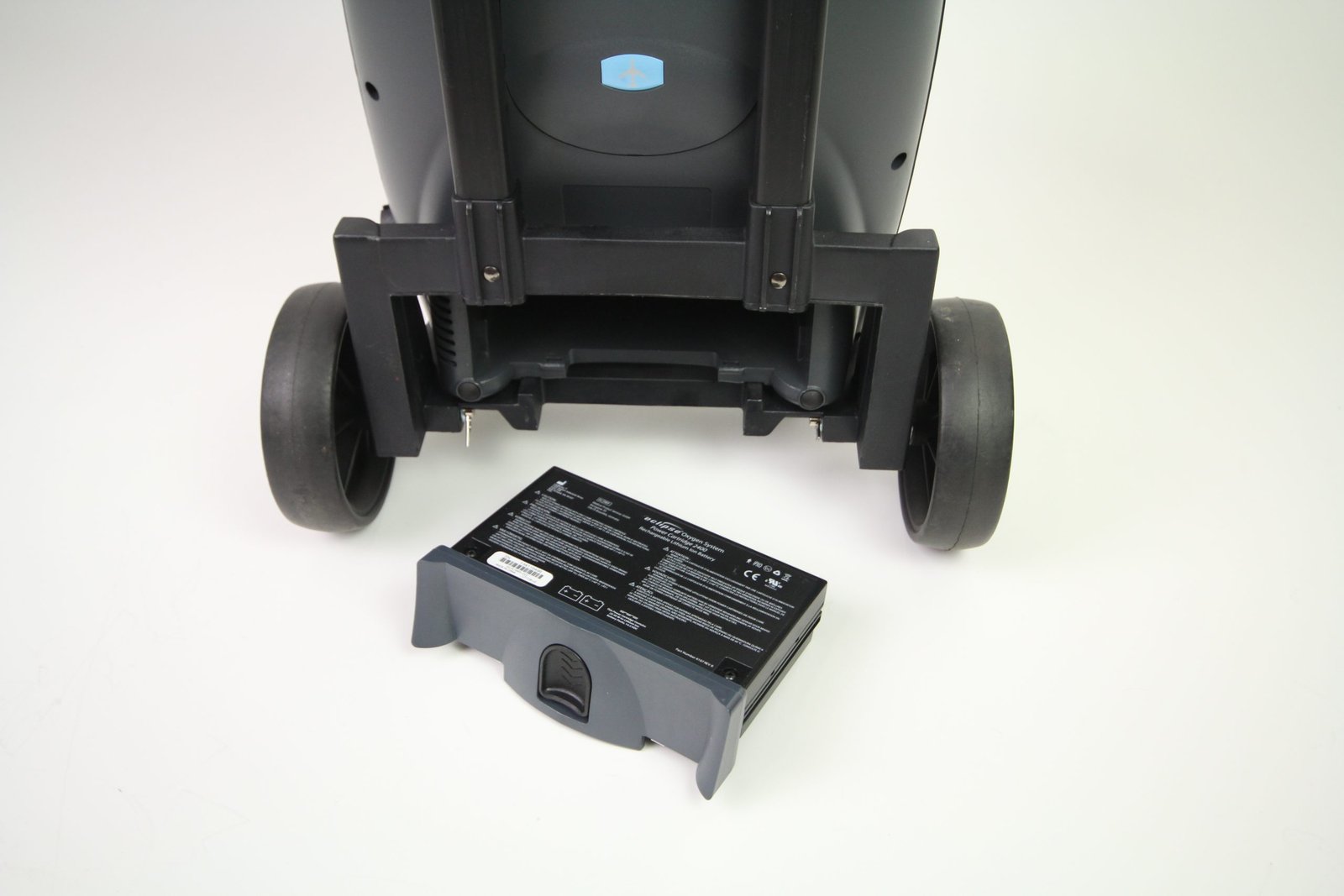

• 1 x Battery

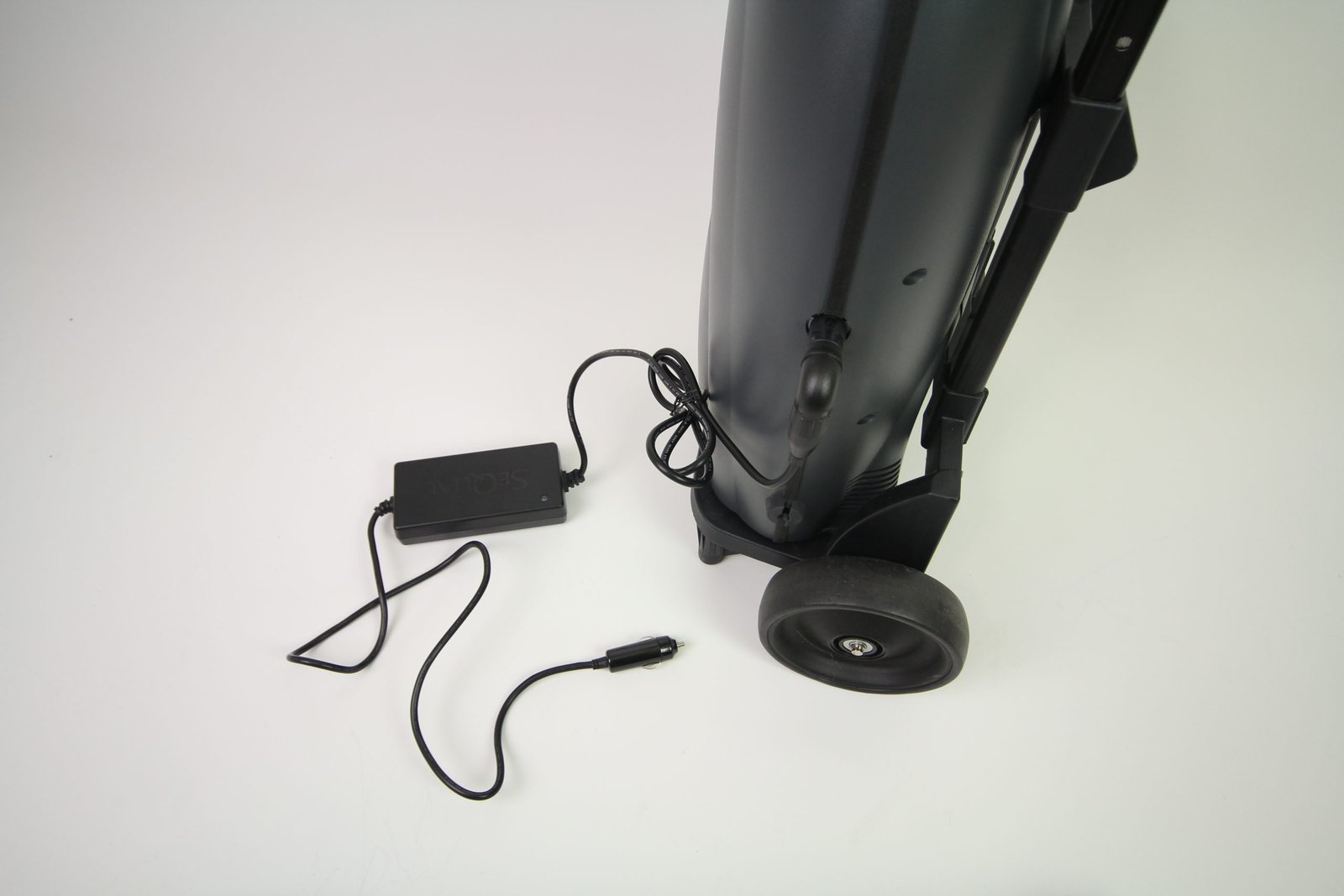

• AC / DC mains and car adaptor
• Travel Bag
• Nose cannula

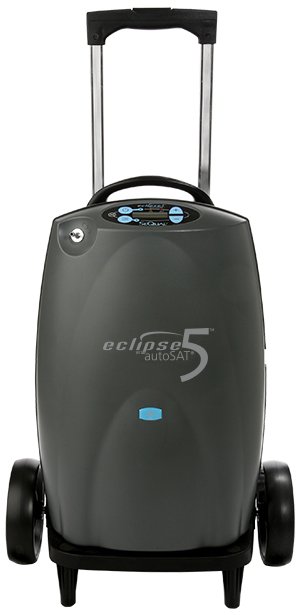

• Large Wheel easy battery access trolley.

This portable o2 concentrator can be used overnight on continuous oxygen mode between 0.5lpm and 3lpm. It can also provide up to 6lpm on pulse mode for good reliable ambulatory use, and is particularly effective with patients that struggle to maintain good O2 saturation levels. Each battery can provide up to 5 hours’ usage at 1 to 4lpm in pulse mode, and the Eclipse can be run on DC car adaptor or any mains voltage system around the world. This means it is also fine to use on cruise ships and is approved by most major airlines. The Eclipse 5 has great new features that make it capable of supplying oxygen up to high-level dosages of 6lpm (192ml per breath). It also monitors patient breathing every 15 seconds on pulse mode, and if it discovers that the patient is struggling to breathe, it automatically alternates between continuous flow and pulse to ensure that the patient receives oxygen correctly. For instance, if a patient falls asleep on the pulse mode the Eclipse will automatically switch to continuous flow to ensure maximum patient safety. Please call or email for pricing, as this product can only be supplied after consultation from one of our medical team! Special Features:

• Can be used overnight with CPAP and other Bi-Level devices in continuous mode
• Auto SAT technology is a new technology that monitors patient breathing and guarantees a maximum dose for each breath
• Can provide up to 192ml dosage of oxygen per breath, and in some cases can maintain patients requiring 8lpm
• FAA approved for commercial air travel
• Three pulse dose rise time levels on pulse mode - fast, medium and slow delivery per breath
• 3-stage Sensitive mode for detection of breath on pulse mode
• Updated manufacturer battery times May 2013

Each battery supplies in hours an average of:

• 1lpm pulse on demand   =  5
• 2lpm pulse on demand   =  4 ½
• 3lpm pulse on demand   =  4
• 4lpm pulse on demand   =  3 ½
• 5lpm pulse on demand   =  3
• 6lpm pulse on demand   =  2 ½
• 6lpm (128ml per breath) = 2
• 6lpm (160ml per breath) = 1 ¾
• 6lpm (190ml per breath) = 1 ½
• 0.5lpm continuous flow  =  4
• 1lpm continuous flow     = 3 ½
• 1.5lpm continuous flow  = 2 ½
• 2lpm continuous flow     = 2
• 2.5lpm continuous flow  = 1 ½
• 3lpm continuous flow     = 1 ¼

Technical Specification

• H x W x D 19.3 x 12.3 x 7.1 inches / 49.0 x 31.2 x 18.0 cm
• Weight: with Power Cartridge 17.4lb (7.9kg); without Power Cartridge 13.9lb (6.3kg)
• Continuous flow settings 0.5 to 3.0lpm (0.5-litre increments)
• Oxygen output pressure 5.0 psig (34.5 kPa) nominal pulse flow settings 1.0 to 6.0 (0.5 increments)
• Trigger sensitivity adjustable between 0.25cm H2O to 0.7cm H2O
• Sound level 48dB(A) at 3.0lpm continuous flow; 40dB(A) at 3.0 pulse flow setting.

Warranty

• Unit Warranty 3 years
• Batteries and Accessories : 1 years
